• GPS Tracker GPS104B Vehicle Car Truck Waterproof ,real-time track
  • MODEL： CAR0018

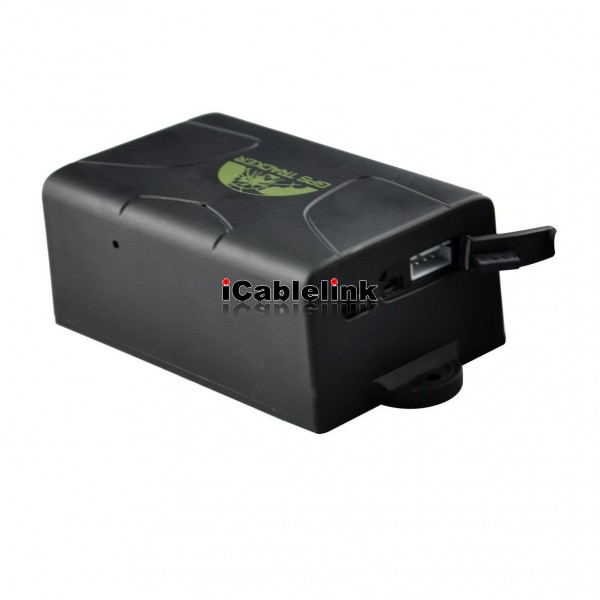

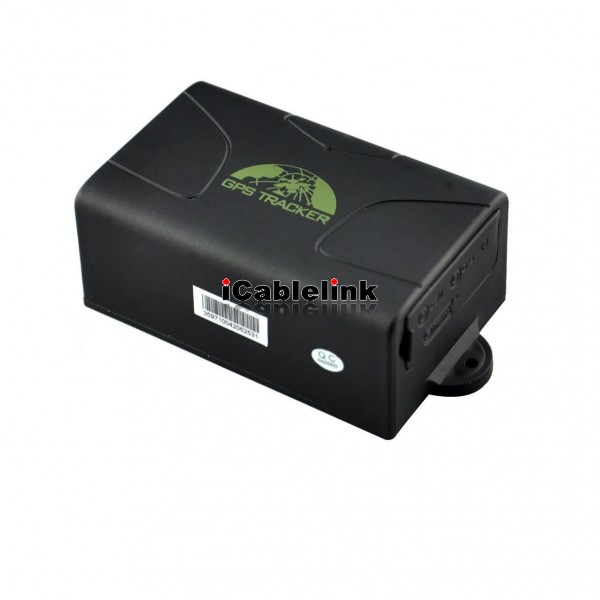

• • GPS Tracker GPS104B Vehicle Car Truck Waterproof ,real-time track

  •

    Introduction

    This tracker GPS104B is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.


    Features

    * Waterproof shell
    * Built-in large capacity 6000MA battery, long standby time of 100 days.
    * Powerful magnets to absorb to vehicle firmly.
    * Real-time tracking, retrieve of lost vehicles, cargo.
    * Movement alarm, Geo-fence alarm, shock sensor alarm, remote monitoring.
    * Support map viewing on mobile phone screen, get absolute address by SMS, GPRS real time tracking on web based server.
    * Built-in high sensitivity GPS and GSM antenna to make it can be used alone without installation, convenient and quick.

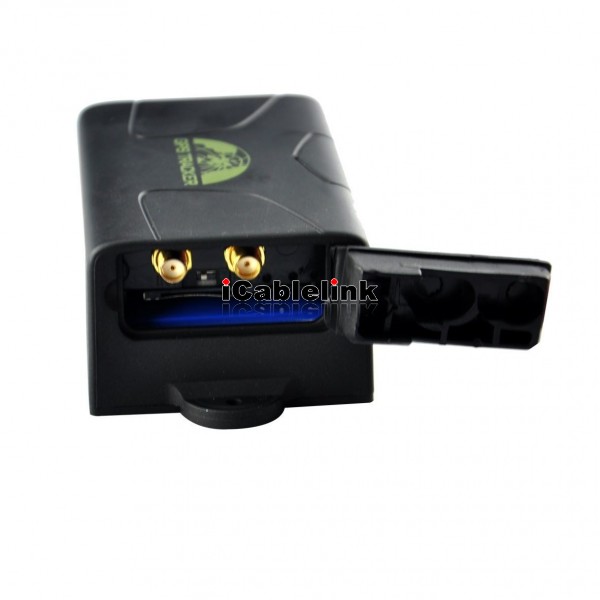

    * Support for external GSM antenna, GPS antenna, and external power supply for the tracker to be installed on the device which can provide
    power for long-term using.

    Specifications

    Content	Specifications
    DIM.	94mm*60mm*38mm
    Weight	300g
    Network	GSM/GPRS
    Band	850/900/1800/1900Mhz or 900/1800/1900Mhz
    GSM/GPRS Module	Simcom340z or Simcom300z
    GPS Module	SIRF3 chip
    GPS sensitivity	-159dBm
    GPS Accuracy	5m
    GPS Start time	Cold status	45s
    	Hot status	1s
    EXT. power	DC 12 V -24V
    Operating Current	Sleep Current	4mA±1mA
    	GSM operating Current	54mA±3mA
    	GPRS Current (data transfer)	60mA±5mA
    Battery	3.7V 6000mA/h Polymer battery
    Charge current	1.2A±0.2A
    Charge time	5h
    Standby time	GSM sleep mode	1500h
    Storage Temp.	-40°C to +85°C
    Operation Temp.	-20°C to +65°C
    Humidity	5%--95% non-condensing

    Hardware Description






    Wiring diagram




    Main Functions

    1. Single Locating
    Tracking location, when no GPS signal, the SMS includes the last valid latitude & longitude as well as the LAC code of current position,
    the LAC code can be input in the column of “manual track” menu of web platform.

    2. Auto track continuously
    a. Track with limited times upon time interval
    b. Track with unlimited times upon time interval
    c. Smart track upon time and distance interval

    3. Automatic update positions of vehicle turns
    The tracker will update the positions automatically to web server once the vehicle changing driving direction over pre set angle
    value to form a smooth trajectory consistent with the actual road, this function is only effective in GPRS mode.

    4. GPS drift suppression
    The GPS data stop updating if vehicle is not moving and latitude and longitude always keep same, and GPS data updates
    automatically when vehicle is moving.

    5. Get absolute street address
    Note: You must set up the APN of your local GSM network for the SIM card in tracker first before using this function.

    6. Location based service (LBS)
    When the tracker device doesn’t received valid GPS signals, tracker will locate by LBS, the messages includes the GPS
    coordinates of the last position in SMS mode, but the LAC in message is the current new position, the location can be seen
    by input the LAC code in the menu “Manual Track” of web platform ;www.gpstrackerxy.com, you can also send command “address+password” to tracker to get the newest absolute address and newest GPS coordinates as well; tracker will automatically switch to track by location based service in GPRS mode, and actualized on the map of web server with
    LBS mark. And there may be some inaccuracy with actual location by LBS tracking; the bias depends on GSM reception.

    Note: This feature can be used normally in most areas according to the signal of GSM network. It may not be available
    in some areas.

    7. Check the Vehicle State.
    8. Check IMEI
    9. Terminal (local) Time Setting

    10. Monitor (Voice Surveillance)
    The default mode is “track” (Track mode). Send SMS “monitor+password” to the unit, and it will reply “monitor ok!” and switch
    to “monitor” mode.

    11. Data Logging
    Logging Volume: Built-in flash 1MB (store about 16,000 positions); expanded volume depends on the SD card inserted.

    12. Data Load
    13. Forward the third parties’ message
    14. Cut off the Oil and Power System
    a. Execute immediately Mode
    Send command “quickstop+password” to tracker, it will reply “quickstop OK”. Then tracker will stop the car immediately after “stop” command. Send command “stop+password” to tracker, tracker will execute it and reply “Stop engine Succeed”.
    And it will remain immobile state until next command to resume.

    b.Execute depends on speed(Default mode)
    Send command “noquickstop+password” to tracker, It will reply “noquickstop OK”, Then the tracker won’t stop the car
    immediately after “stop” command during the speed above 20KM/H, instead, it will reply “it will be executed after speed less than 20KM/H”, and stop the car when the speed is less than 20KM/H.


    15. Resume the Oil and Power System
    16. Sleep Mode
    a. Sleep by time
    Send "sleep+password+space+time", tracker will reply "sleep time ok" if none of the alarms listed under chapter IV has been set and no operations, tracker will fall asleep in 5 minutes, LED will be off, calling or SMS can awake the tracker. If these alarms have been set, tracker will enter sleep by detecting shock sensor. And tracker will sleep by time as default.

    b. Sleep by shock sensor
    Send "sleep+password+space+shock", tracker will reply "sleep shock ok", it will enter sleep mode after detect no shock, and LED will be off.

    17. No sleep mode
    18. Geo-fence
    19. Multi-area management
    20. Movement alert
    21. Overspeed alert
    22.Accident alarm (Optional)---If you need this function, you add extra $6 for it will be ok!
    When tracker detects accident occurred (severe impact), it will send " Accident! + latitude & longitude " to all authorized phone numbers.

    23. Shock Sensor Alarm
    24. SOS Alarm
    25. Low battery alert
    26. Power off alarm
    27. GPS blind Spot alert
    28. TCP/UDP switch

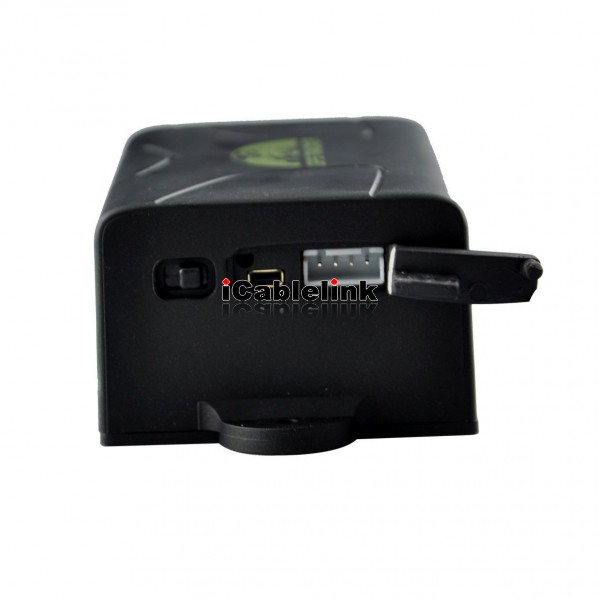

    29. Configure parameters by USB
    Connect tracker to computer with the USB cable (option), and open file user_config.ini with notepad and operate it according to the examples.
    Note: Correct password is need every time you configure the tracker.

    30. Less GPRS traffic
    Tracker will change to less GPRS traffic mode & sleep by shock sensor mode after parking 5 minutes, GPRS disconnect and connect again when alarm being triggered or start driving.

    31. Setup monitor center number
    If monitor center number doesn’t setup, auto track messages will be sent to the cell phone which send this command.

    Web platform and PC installation tracking software:

    a. Web based platform www.gpstrackerxy.com Configuration IP: 202.104.150.75 Port: 9000. Please check "software platform user manual" included in the CD for detailed operation information.


    b. PC based installation tracking software user manual included in the CD in package, it is free for using!
